Introduction

In the automotive and motorsports world, rapid data acquisition and interpretation represent the clear line between a winning vehicle and an unreliable one. Just as predictive monitoring of "Angels' Share" has become vital to optimize the maturation of distillates by reducing losses and maximizing quality, predictive vehicle dynamics analytics is now an essential tool. It allows engineers and test drivers to anticipate physical behavior on the track and road, transforming complex telemetry flows into a decisive strategic advantage.

The Automotive Challenge

Latest-generation vehicles and racing cars generate an impressive amount of physical and digital data during operation. The real challenge for engineers is no longer simply recording this information, but identifying microscopic anomalies in real time before they become catastrophic—such as high-frequency resonances in the chassis, anomalous thermal variations, drops in power delivery, or dynamic suspension inefficiencies. Without a system capable of predictive tracking, these defects translate into lost lap times or serious mechanical failures.

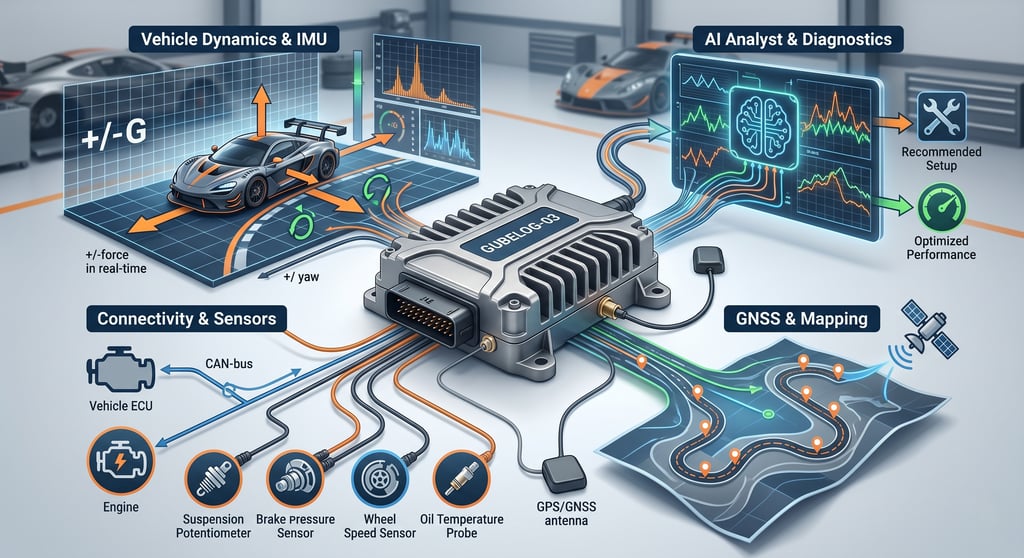

The Role of the GUBELOG-03 Datalogger

Designed to withstand the most demanding conditions, the GUBELOG-03 fits into this context as the ultimate controller. Unlike many other systems, the "03" model is equipped with a high-performance GPS/GNSS module with an external antenna and a 10Hz update rate, essential for ultra-high-resolution spatial mapping and lap times. Capable of acquiring up to 38 inputs simultaneously, the device is enclosed within an IPX7-rated enclosure and connected via a single-connector "Automotive Grade" JAE MX23A26NF1 harness (designed to withstand thermal shock and engine compartment vibrations).

Predictive Performance Tracking

GUBELOG-03's predictive tracking uses an uncompromising combination of inertial data and hardware telemetry:

Extreme Inertial Measurement Unit (IMU): A 6-axis sensor soldered onto a PCB reads accelerations up to +/- 30g and gyroscopic rotations up to +/- 2000°/sec with an internal sampling rate of 1125Hz. This allows for pinpoint tracking of roll, pitch, yaw, and lateral/longitudinal G-loads.

Mixed CAN-Bus/Analog Acquisition: In addition to sniffing up to 16 vital channels directly from the vehicle's ECU via high-speed CAN Bus (OBD II, J1939 protocols, etc.), the logger uses 8 analog inputs (with sampling rate up to 400Hz) for brake pressure sensors or suspension potentiometers. Additionally, ultra-high-fidelity digital inputs process wheel speed or engine RPM signals at frequencies up to 20 kHz with near-zero latency.

Spectrum Analysis: Using the GUBELLINI DataStudio suite, users can vector-calculate the Fast Fourier Transform (FFT). This three-dimensional tracking detects anomalous frequencies (such as wheel chatter) long before the driver can detect them.

Setup Optimization

The real benefit of the GUBELOG-03 comes from moving from tracking to corrective action:

Diagnosis via AI Analyst: A proprietary software module equipped with a multi-agent AI automatically inspects the datasets. If a usage profile such as "Go-Kart Racing" is enabled, the AI ​​automatically sifts through the data to report stalls under braking or drastic drops in RPM when exiting corners. Once the trigger is identified, the AI ​​automatically generates a professional report and suggests clear mechanical interventions—such as changing the crown gear ratio or modifying the suspension hydraulics.

Automatic Correction (Actuators and Relays): Using two dedicated digital outputs and internal hardware logic, the alarm algorithm allows the data logger to drive external relays. If predictive monitoring detects a critical temperature rise or pressure drop, the GUBELOG-03 can autonomously activate fans, pumps, or emergency solenoid valves in real time.

Virtual Channels: Engineers can write C# scripts that generate instant "math channels" to refine calculations (e.g., low-pass filters on rough terrain, calculation of wasted power, or sway offsets) applied to the vast amounts of recorded data.

Conclusion

Just as meticulous evaporation management optimizes distillation yield, the GUBELOG-03's predictive analytics revolutionizes vehicle tuning on the track and road. Combining a robust set of motorsport-derived hardware (10Hz GPS, 1125Hz IMU, automotive connectors)
