PROFESSIONAL DATA RECORDING SYSTEMS
HARDWARE
Small and lightweight data loggers from the GUBELOG series
SOFTWARE
SMART
Complete suite for hardware management and analysis with an AI agent
Range of intelligent sensors for use in combination with the GUBELOG series or in other ecosystems
We specialize in the design and production of advanced data-logging ecosystems. We have successfully developed an integrated solution that includes data loggers, the software suite for hardware management and data analysis - featuring an AI agent - and intelligent sensors (such as GUBENAV and CAN-BOARD).
Beyond motorsport, our devices can be used in a wide range of applications:
Motorsport applications
Laboratory testing
Installations on machinery for predictive maintenance
Industrial appications
As experts in designing and building data acquisition devices, we present our line of data loggers and smart sensors, designed for Motorsports, Automotive and Industrial applications.
GUBELOG
GUBELOG is a multi-functional, high-performance datalogger engineered for precision and reliability across a wide range of professional environments. Whether used for automotive, motorsport or INDUSTRIAL applications. It includes GPS/GNSS, 6-axis IMU, 4x digital input, 8x analog input, 16x CAN input and 2 digital output
MICROLOG is a CAN data logger designed for use in various fields (such as automotive, motorsport, laboratory analysis and monitoring, machinery monitoring, precision agriculture, industrial monitoring, process analysis, etc.) thanks to its data logging capability via CAN bus (specifically designed for sectors such as automotive and motorsport) and its ability to support CAN OBDII and J1939 protocols.
CAN-BOARDs are programmable modules capable of detecting various electrical or physical signals (or electrical signals from sensors), processing them, and transmitting them over the CAN bus. For example, you can use the CAN-BOARD-LoadCell to detect the signal from a load cell (force sensing) and send the data over the CAN bus of a data logger or automotive system.
MICROLOG
CAN-BOARDs
Versatile hardware suitable for use in a variety of settings

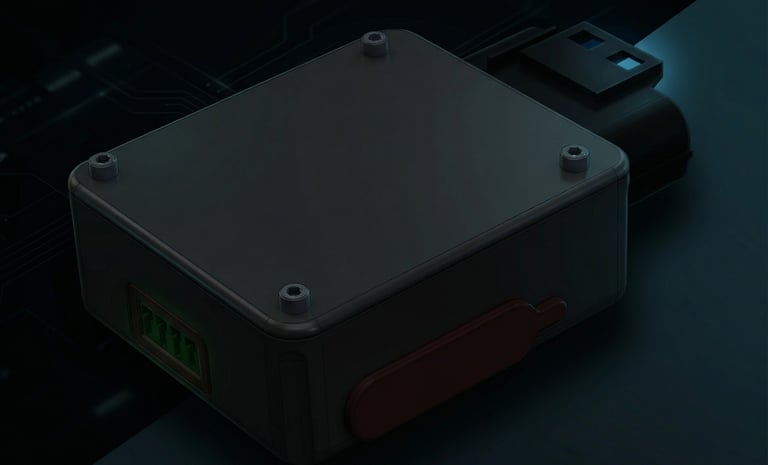

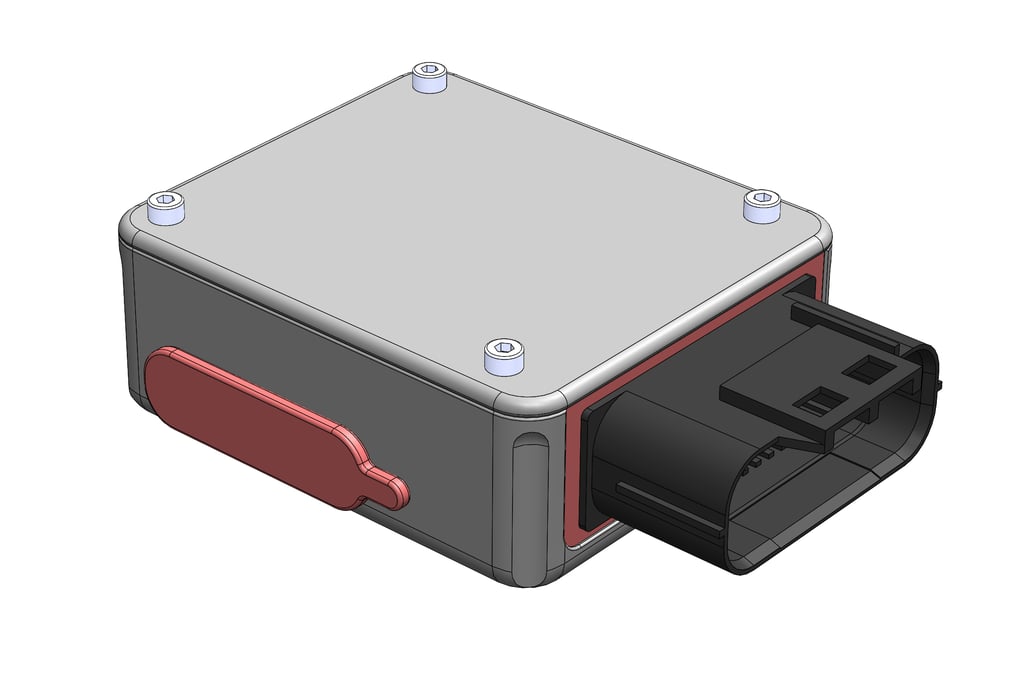

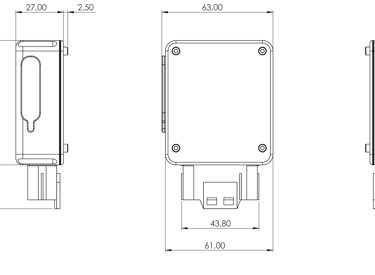

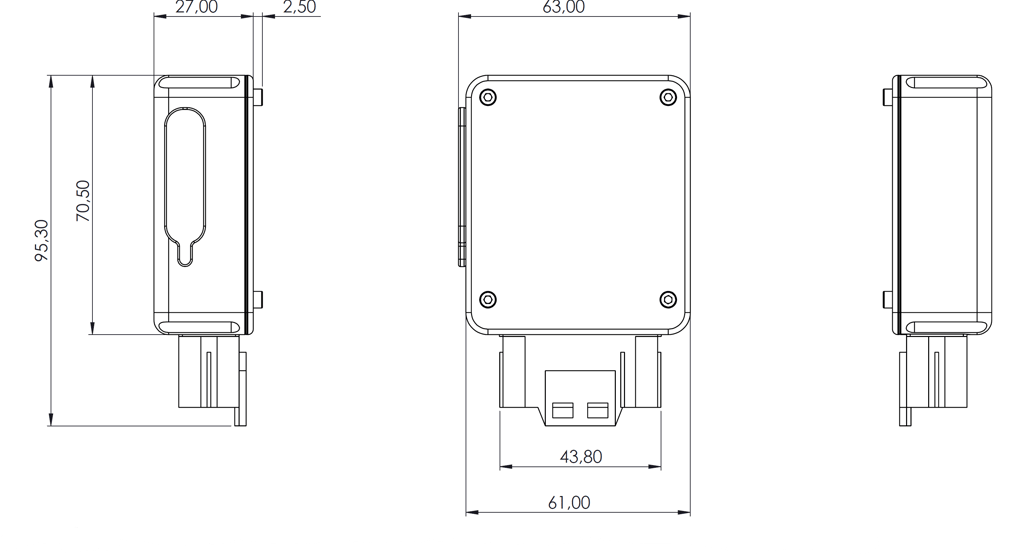

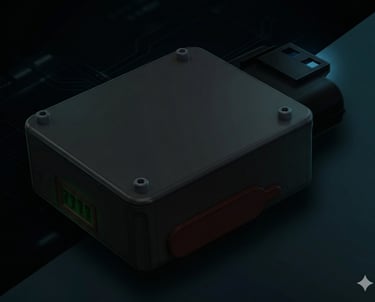

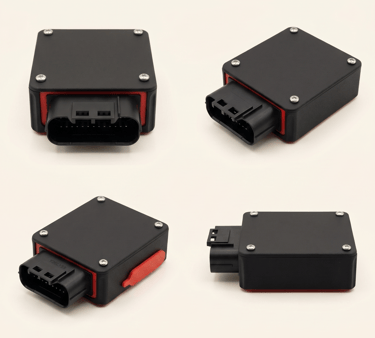

The GUBELOG is a multi-functional, high-performance datalogger engineered for precision and reliability across a wide range of professional environments. Whether deployed for laboratory analysis, industrial machinery monitoring, precision agriculture, or high-stakes automotive and motorsport applications, this hardware provides the robust architecture needed for mission-critical data acquisition.
Key Performance Features
Massive Scalability: Acquire data from up to 38 inputs simultaneously.
Dynamic Sampling: Supports frequencies ranging from 0.01Hz to 200Hz, making it ideal for both long-term environmental monitoring and rapid dynamic analysis.

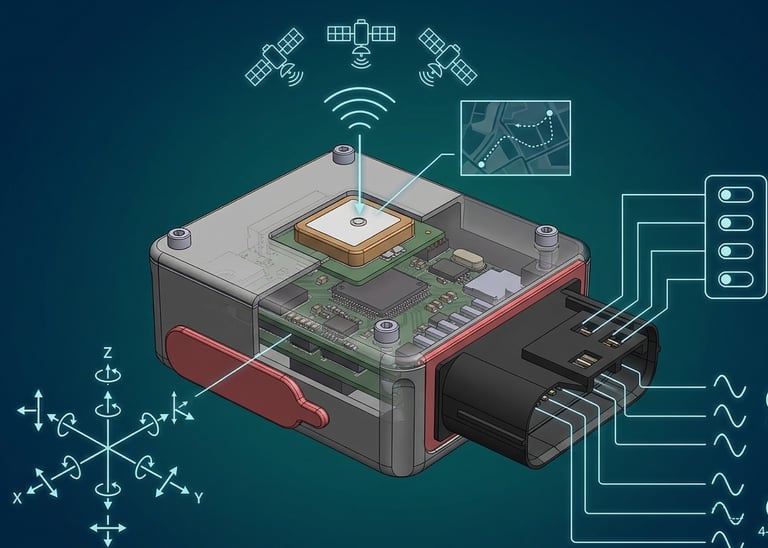

Integrated Modules: Features a high-frequency 10Hz GPS/GNSS receiver and a 6-axis Inertial Measurement Unit (IMU) for precise motion and position tracking.
Flexibility: 4x digital input, 8x analog input (4x designed for 4-20mA sensors), 1 CAN line x 16 input

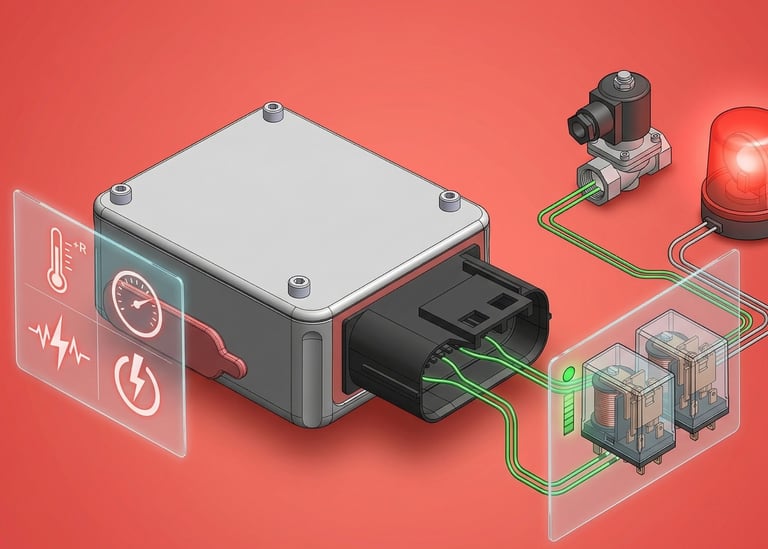

Automation: 2x digital output to drive relay and manage automation
Ruggedized Design: Constructed with a Nylon PA12 + 35% GF housing (for the lightweight version) and a robust aluminum housing (for maximum strength). It includes a waterproof JAE MX23A automotive-grade connector, the unit boasts an IP67 rating.
Extreme Resilience: Operates reliably in harsh conditions with a temperature range of -20°C to +85°C.
GUBELOG
A sophisticated easy to use CAN logger unit, to log directly from CAN bus
MICROLOG-01 is a CAN data logger designed for use in various fields (such as automotive, motorsport, laboratory analysis and monitoring, machinery monitoring, precision agriculture, industrial monitoring, process analysis, etc.) thanks to its data logging capability via CAN bus (specifically designed for sectors such as automotive and motorsport) and its ability to support CAN OBDII and J1939 protocols. The data logger is designed to acquire up to 16 signals
Key Performance Features
Massive Scalability: Acquire data from up to 16 inputs simultaneously.
Dynamic Sampling: Supports frequencies ranging from 0.01Hz to 200Hz, making it ideal for both long-term environmental monitoring and rapid dynamic analysis.

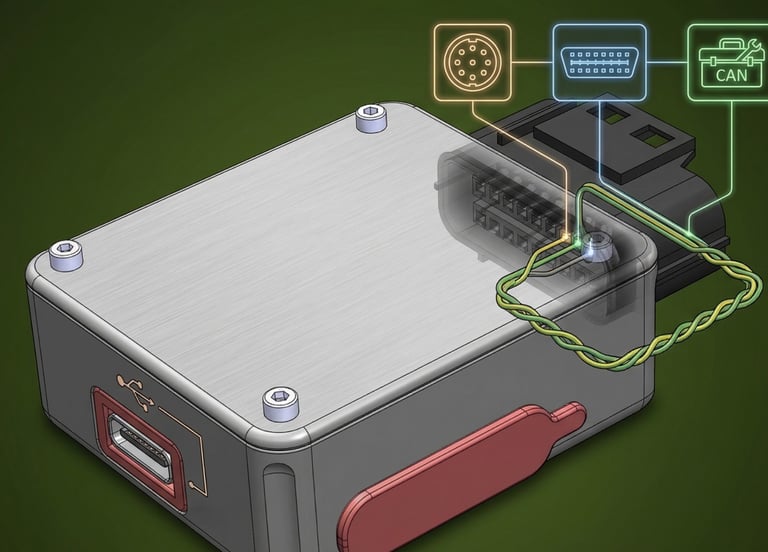

Transceiver: High-Speed CAN 2.0B.
Protocols: Using the GUBELLINI DataStudio software it is possible to configure the CAN bus according to the OBD II, SAE J1939, ISOBUS (ISO 11783), OpenCAN (EN-50325-4) protocols
Ruggedized Design: Constructed with a Nylon PA12 + 35% GF housing (for the lightweight version) and a robust aluminum housing (for maximum strength) The unit uses a waterproof SUPERSEAL 1.5series 4 pin automotive-grade connector, the unit boasts an IP67 rating.
Extreme Resilience: Operates reliably in harsh conditions with a temperature range of -20°C to +85°C.
GUBELLINI DataStudio,
the complete suite to manage all our devices
Our device (such as the GUBELOG and MICROLOG or CAN-BOARDs) are managed entirely through a single, free software program: GUBELLINI DataStudio. With GUBELLINI DataStudio, you can configure the devices: for example, you can configure the inputs (digital and analog), configure the CAN bus and OBDII protocol, set sampling rates, and more. GUBELLINI DataStudio also allows you to download recorded data (saved in sessions called “datasets”), or extract data directly from the micro SD card. Finally, GUBELLINI DataStudio provides a series of very powerful analysis tools that make GRIPONE systems a complete data recording ecosystem.

GUBELOG in Motorsports,
GUBELOG-03R, in combination with GUBELLINI DataAnalysis, can provide a complete solution for your motosport applications. We can form a complete ecosystem capable of meeting the needs of many professional and amateur motorsport applications. Many motorcycle applications (such as in national SBK, SuperSport, SuperStock, SuperTwins, and other championships or trophy) can be addressed simply by using the GUBELOG-03R (which includes a 6-axis inertial platform and a GPS module), a plug-and-play wiring harness to connect to the vehicle's CAN bus, and (upon request) a few additional sensors.
GUBELLINI DataAnalysis,
the data analysis software a level up
GUBELLINI DataStudio allows you to configure all our devices and analyze datasets. However, for professional-grade analysis, we offer GUBELLINI DataAnalysis (free of charge) our most advanced data analysis software. It features professional capabilities such as layout and multi-graph management, On-Board video import/export, a math channel editor, a track map editor, Advanced dataset comparison and much more. While primarily designed for motorsport and automotive applications, GUBELLINI DataAnalysis is suitable for any use case, thanks to its exceptional flexibility and powerful tools.
Try it now by downloading the installer, which includes sample data.
GUBELLINI VectorVision,
the video analysis software
GUBELLINI VectorVision is a professional software for sports video analysis. VectorVision is a great tool for who works in motorcycle racing, car racing, Off-road sports (like Downhill or MTB) and many other sports. VectorVision compares two recordings of the same stretch of track: the Master (the main video) and the Ghost (the comparison video), which appears over the Master like a transparent opponent. The program aligns the two recordings in space and time by itself, draws the trajectories on the ground, computes the live time delta, the times at virtual gates, the speeds (km/h with metric calibration), the body angles with artificial intelligence, and overlays the telemetry of data loggers.
SMART SENSORs
IMU-CAN: a complete module for dynamic vehicle management
IMU CAN is the new inertial measurement unit, designed specifically for use on motorcycles with traditional or electric engine, for sports or road use. Thanks to its two 3-axial accelerometers ,one 3-axial gyroscope and 3-axial compass , it is able to detect the dynamic orientation of the vehicle. A complex algorithm processes the data, comes from the sensors, to calculate the roll angle, the pitch angle, eliminating completely the typical drift effects of these devices. All data are made available for other devices via CAN bus communication
GUBENAV: High-Dynamics 100Hz GPS & IMU Sensor
GUBENAV is a cutting-edge vehicle positioning and dynamics sensor designed for professionals requiring ultra-fast and reliable telemetry data. Seamlessly integrating a high-sensitivity GPS-GNSS module with an advanced 6-axis IMU, GUBENAV uses sophisticated sensor fusion algorithms to interpolate and calculate precise geographic coordinates, velocity, and orientation angle with an update rate of just 100 Hz. Additionally, GUBENAV provides data from three accelerometers (X, Y, and Z) and three gyroscopes (X, Y, and Z). Based on a robust CAN 2.0 architecture, GUBENAV bridges the gap between raw spatial data and usable telemetry, making it the perfect spatial awareness hub for your network.
CAN-BOARDs: Get datas from sensors and send them over CAN bus
CAN-BOARDs are programmable modules capable of detecting various electrical or physical signals (or electrical signals from sensors), processing them, and transmitting them over the CAN bus. For example, you can use the CAN-BOARD-LoadCell to detect the signal from a load cell (force sensing) and send the data over the CAN bus of a data logger or automotive system. You can also use the CAN-BOARD-GPS to detect geographic coordinates and ground speed via GNSS and send them over the CAN bus.
